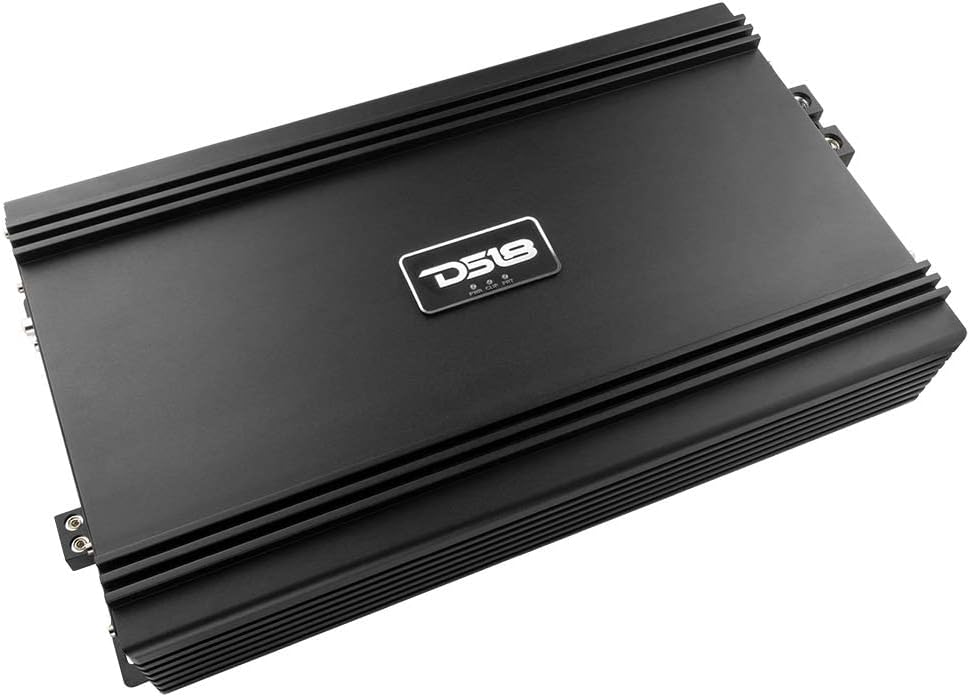

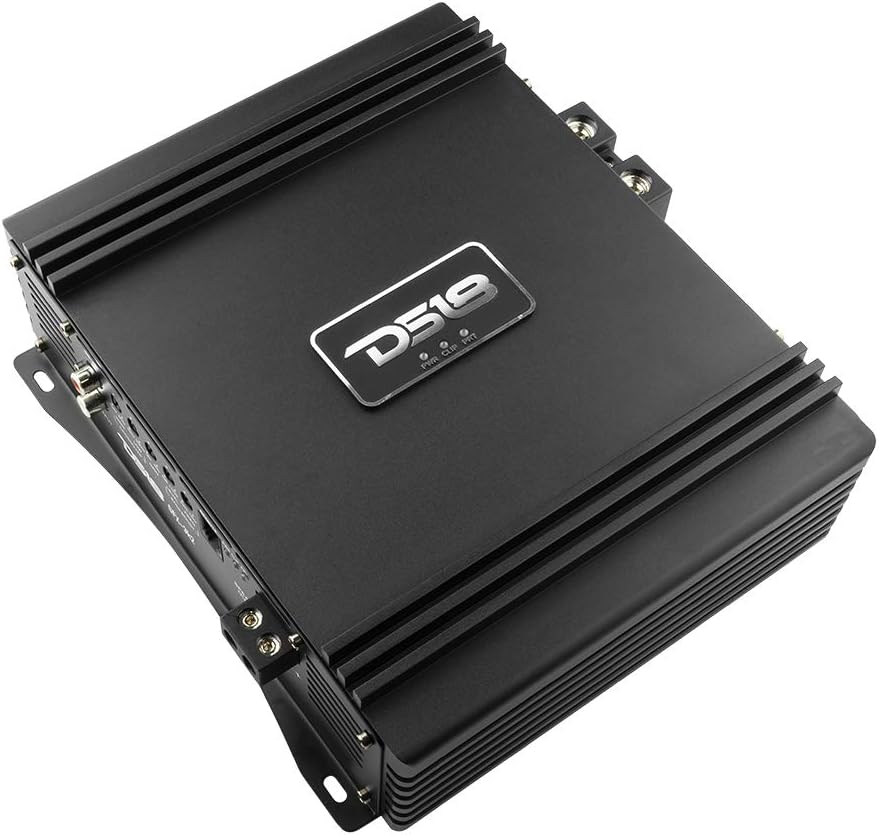

Car Audio Amplifier 3000 Watts Rms 2-Ohm X6827
Car Audio Amplifier 3000 Watts Rms 2-Ohm X6827

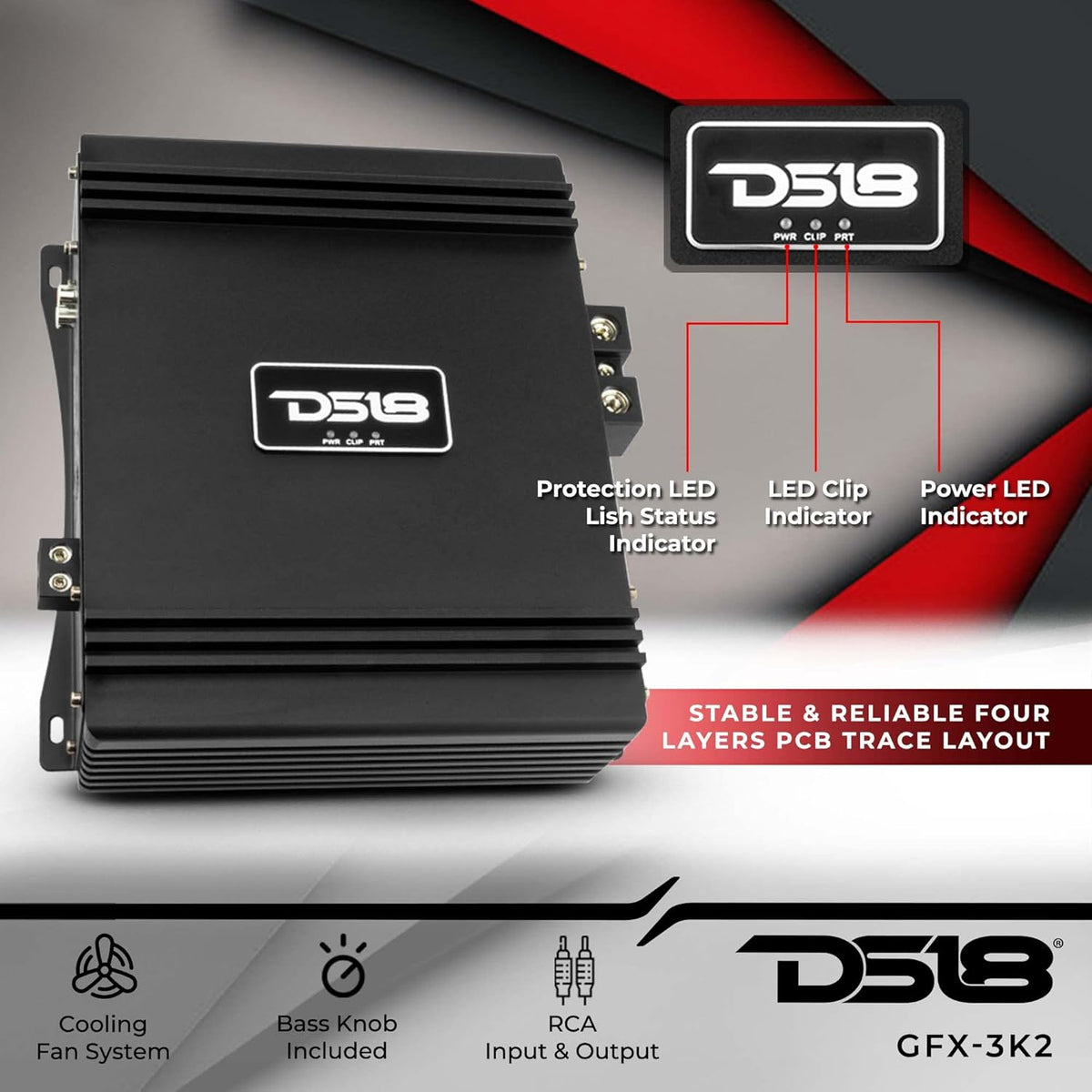

PROTECTION CIRCUITRY – Against Overload Short Circuit Thermal Low Voltage High Voltage and Reverse Polarity These Protection Features Are Designed to Protect the Amplifier From Misuse As Well As From Common Causes Of Amplifier Failure
PLATINUM FINISH CONNECTIONS – Ensure solid electrical connections that resist corrosion Fully Variable crossovers promote installation ease and save the cost of outboard crossovers

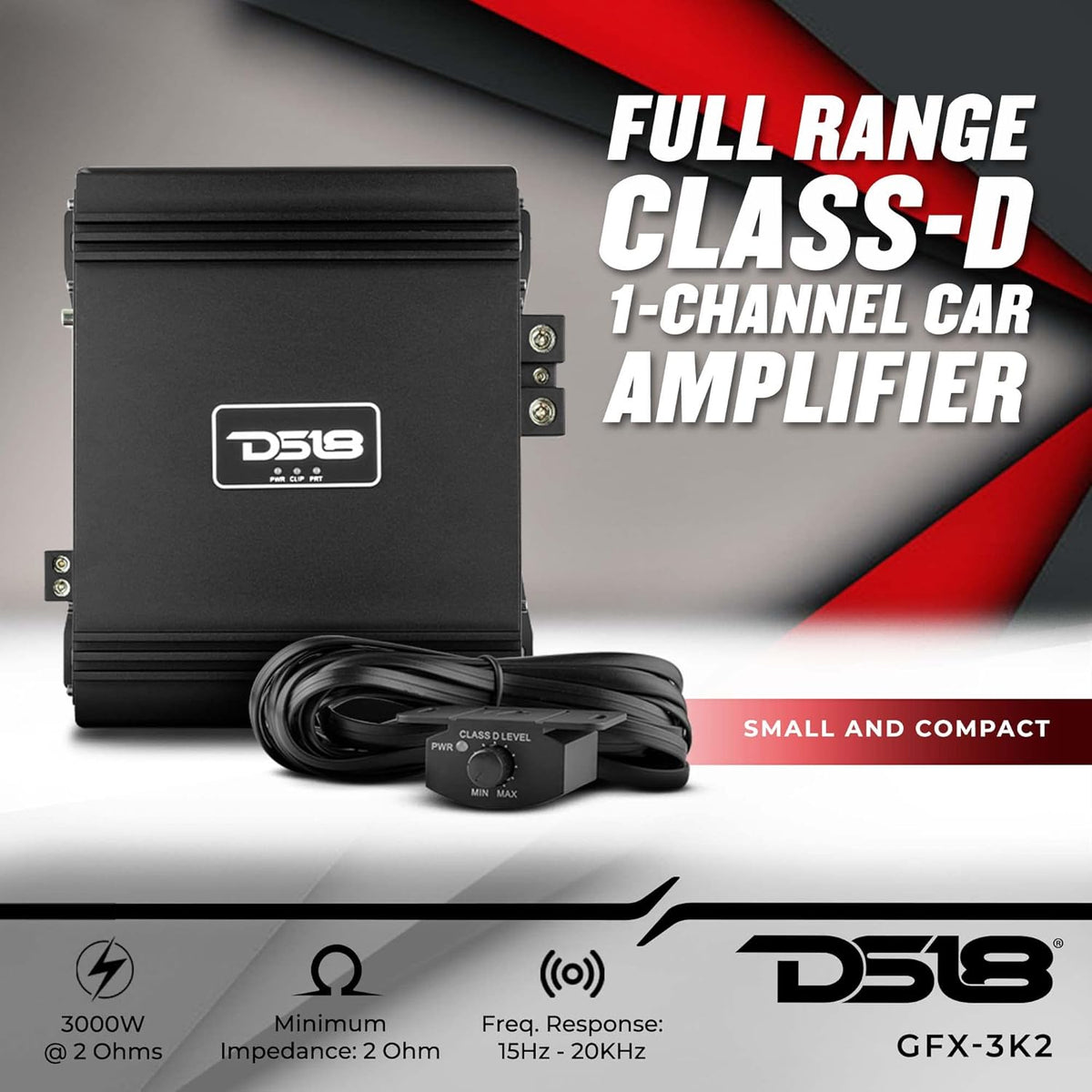

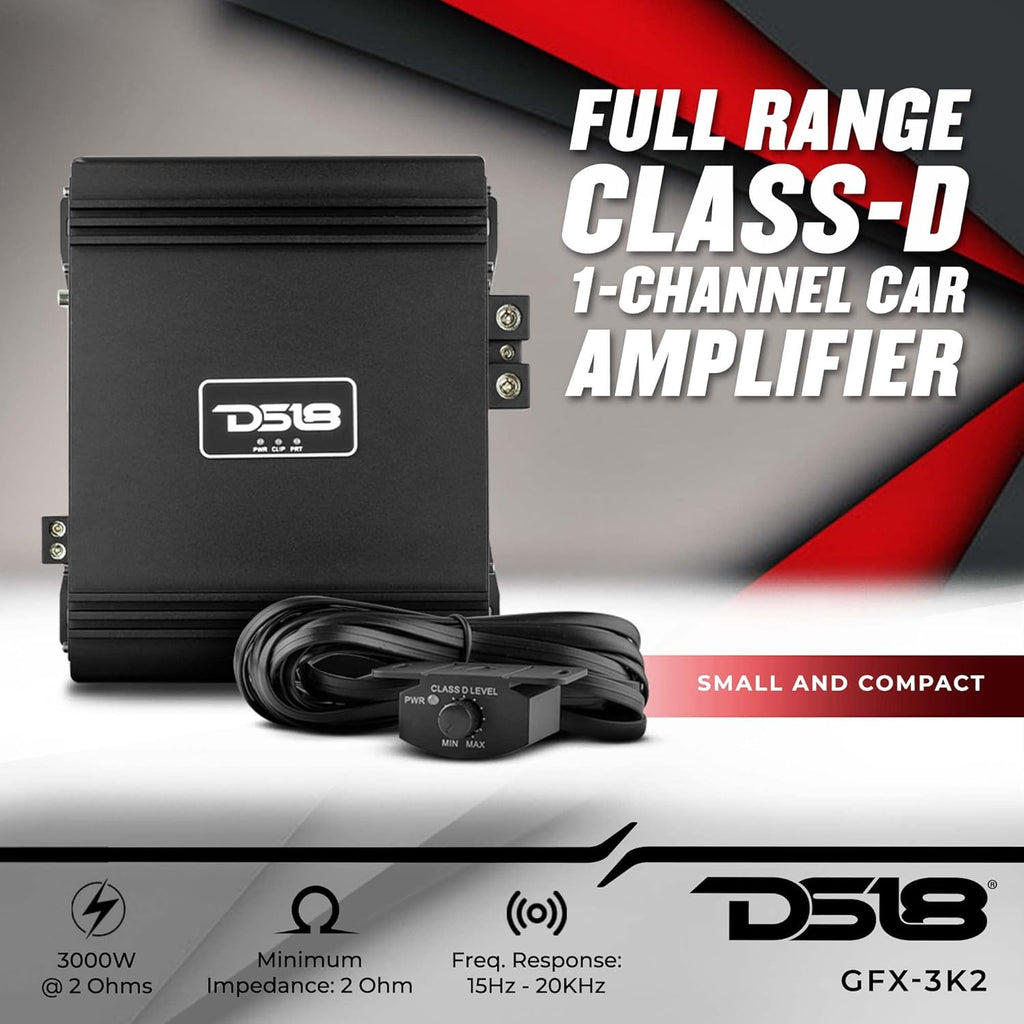

FULL RANGE AMP - If you are looking for an amplifier that can handle the full frequency range then look no further! Wire the most powerful midranges tweeters drivers or coaxial to this full range series
DS18 STRIVES IN GETTING OUR CUSTOMERS THE LATEST AND GREATEST TECHNOLOGY WITH EVERY PRODUCT WE PRODUCE. NOW WE HAVE DEVELOPED OUT LATEST SERIES OF FULL BRIDGE HIGH WATTAGE AMPS, THE GFX SERIES. THESE AMPS ARE GUARANTEED TO GIVE YOU AN AMAZING PUNCH FOR YOUR MONEY. THESE FULL RANGE AMPS ARE PERFECT FOR PLAYING ALL TYPES OF SPEAKERS AND SUBS. THEY HAVE THAT HIGH WATTAGE RATING TO GET MAXIMUM MAX AND DECIBELS FROM YOUR SUBS WHILE WITH JUST A QUICK FLIP OF A FEW SWITCHES, AND THE SAME AMP CAN BE REWIRED FOR AMAZING EAR SHATTERING MIDRANGE SPEAKERS AND HIGHS. THESE AMPS COME ON MULTIPLE CONFIGURATIONS AND BOTH HAVE MODELS SO YOU CAN GET MAXIMUM OUTPUT FROM YOUR SOUND SYSTEM. THESE POWER HOUSES RANGE OF WATTAGE IS 3000, 5000, AND 8000W RMS RESPECTIVELY AND CAN BE BOUGHT IN 1 OHM OR 2 OHM STABLE MODELS. THE DS18 GFX SERIES OF AMPS ARE FOR THE ENTHUSIAST THAT IS SERIOUS ABOUT SQUEEZING EVERY WATT POSSIBLE OUT OF YOUR SOUND SYSTEM FOR A CONCERT HALL TYPE OF SOUND THAT CAN BE HEARD FOR MILES AWAY!

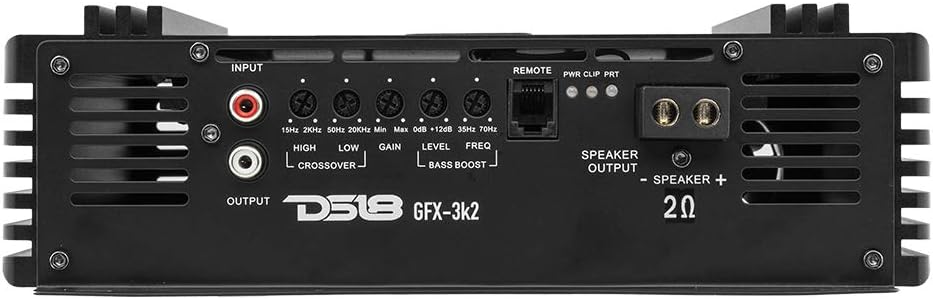

Model No. GFX-3K2
Power @ 2 ohms (14.4V) 3000W
Power @ 4 ohms (14.4V) 2000W
Minimum Speaker Load2 OHM
THD 1%
Input Sensitivity: 0.5-8V

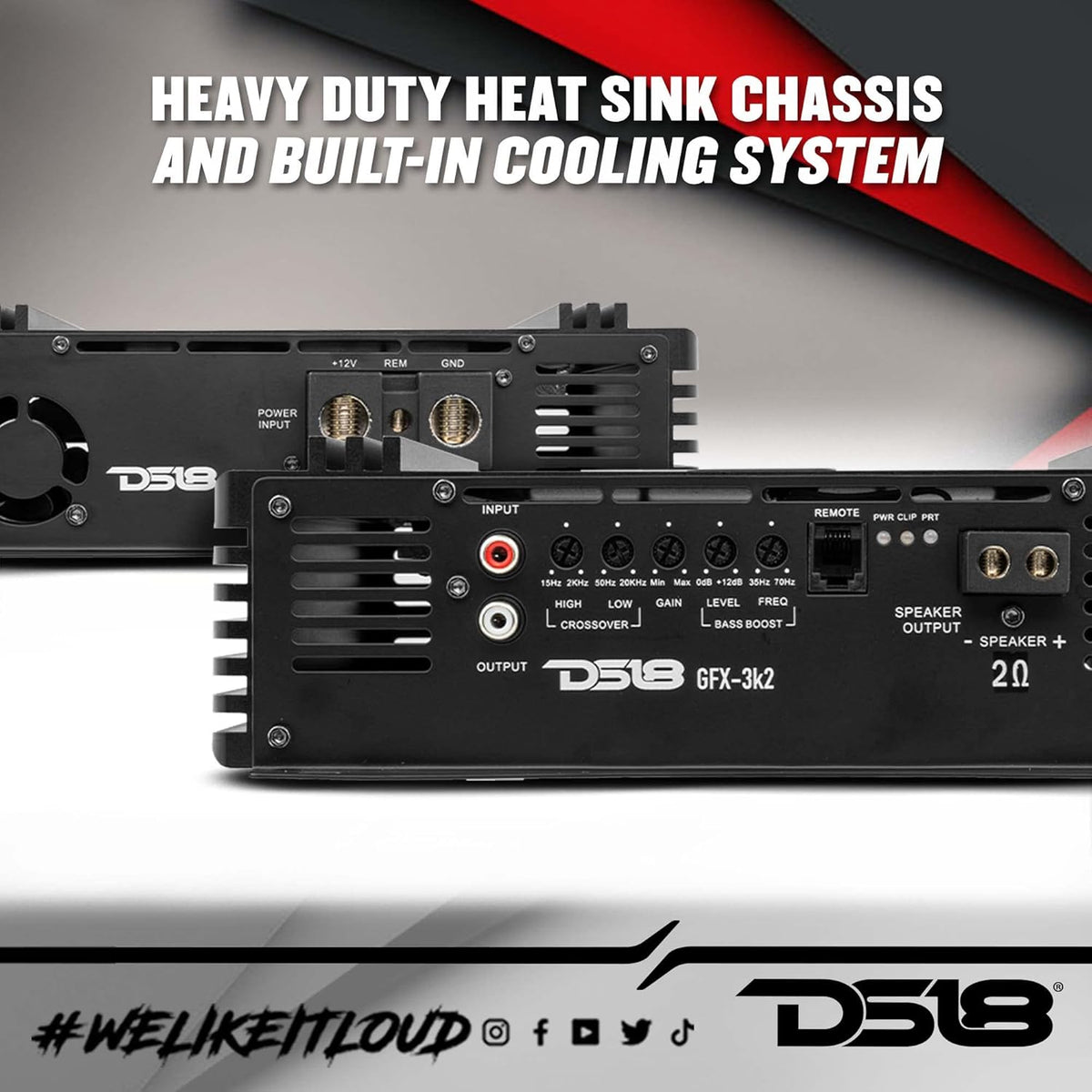

Hi Pass Crossover (12dB/Oct): 15Hz-2KHZ
Lo Pass Crossover (12dB/Oct): 50Hz-20KHZ
Frequency Response: 15Hz-20KHZ
Bass Boost: 0-12dB
Bass Boost Frequency: 35Hz-70Hz
Working Voltage: 9-15V

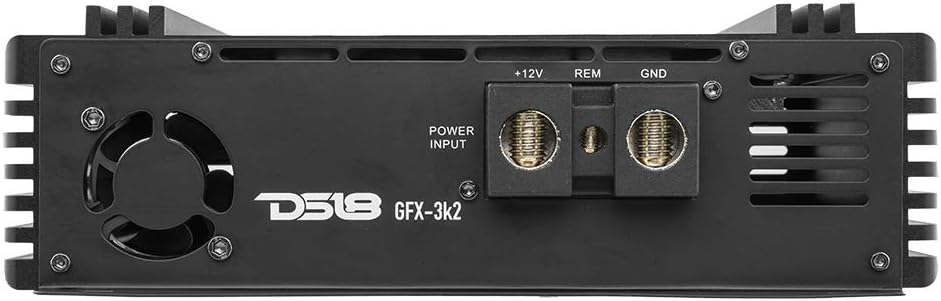

Input Terminal Size: 1/0AWG
Output Terminal Size: 8 AWG
Dimensions (mm) 211 x 236 x 72

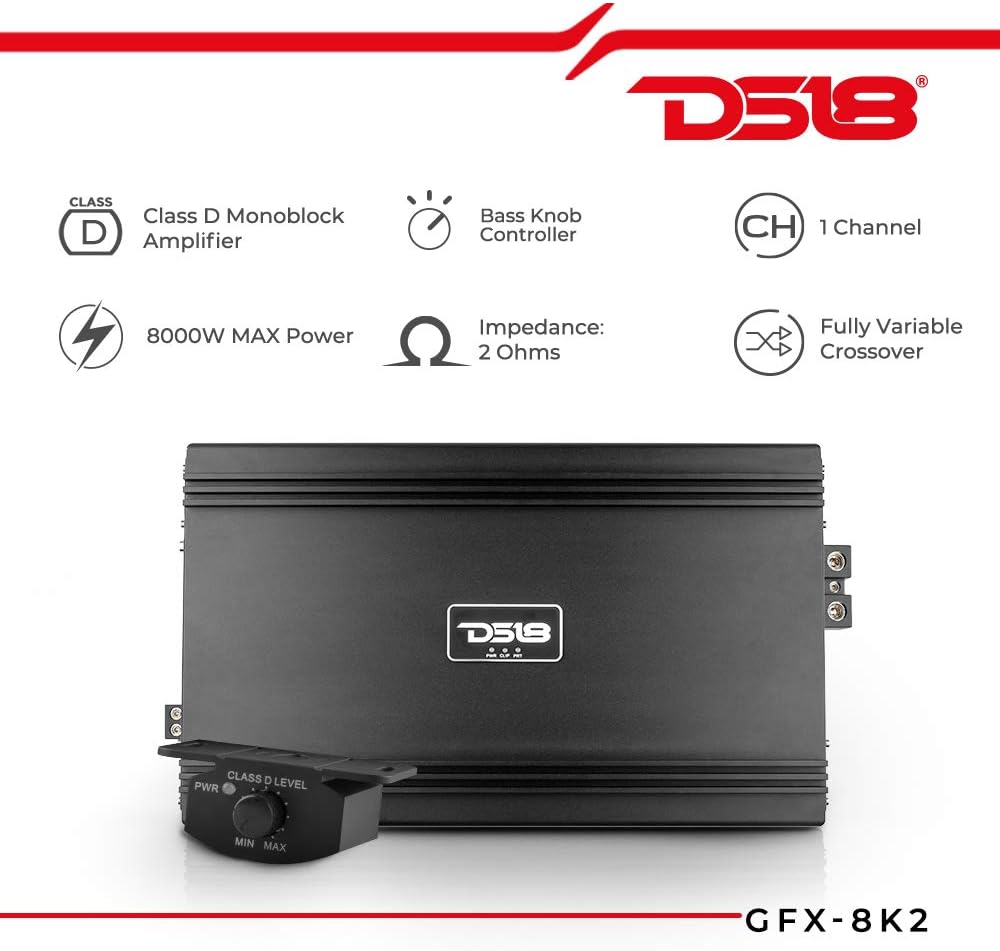

| GFX-3K1 | GFX-3K2 | GFX-5K1 | GFX-5K2 | GFX-8K1 | GFX-8K2 | |
|---|---|---|---|---|---|---|
| Channel | Monoblock | Monoblock | Monoblock | Monoblock | Monoblock | Monoblock |
| Power @ 8 ohms (14.4V) | N/A | 1000W | N/A | 2000W | N/A | 3500W |
| Power @ 4 ohms (14.4V) | 1000W | 2000W | 2000W | 3500W | 3500W | 5000W |
| Power @ 2 ohms (14.4V) | 2000W | 3000W | 3500W | 5000W | 5000W | 8000W |
| Power @ 1 ohms (14.4V) | 3000W | N/A | 5000W | N/A | 8000W | N/A |
| Power @ 0.5 ohms (14.4V) | N/A | N/A | N/A | N/A | N/A | N/A |
| Frequency Response | 15Hz-20KHZ | 15Hz-20KHZ | 15Hz-20KHZ | 15Hz-20KHZ | 15Hz-20KHZ | 15Hz-20KHZ |
| Class | D (Digital) | D (Digital) | D (Digital) | D (Digital) | D (Digital) | D (Digital) |

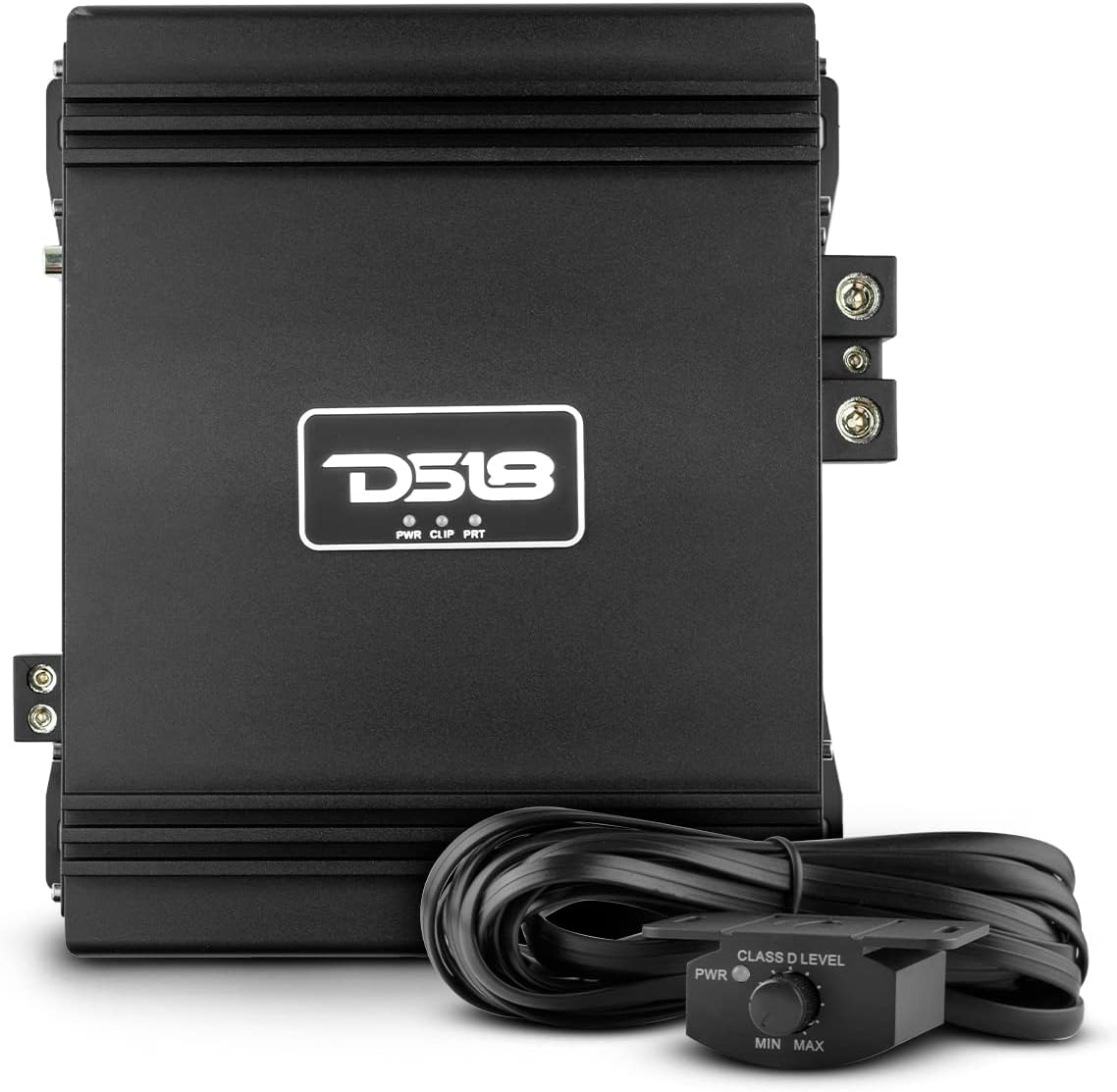

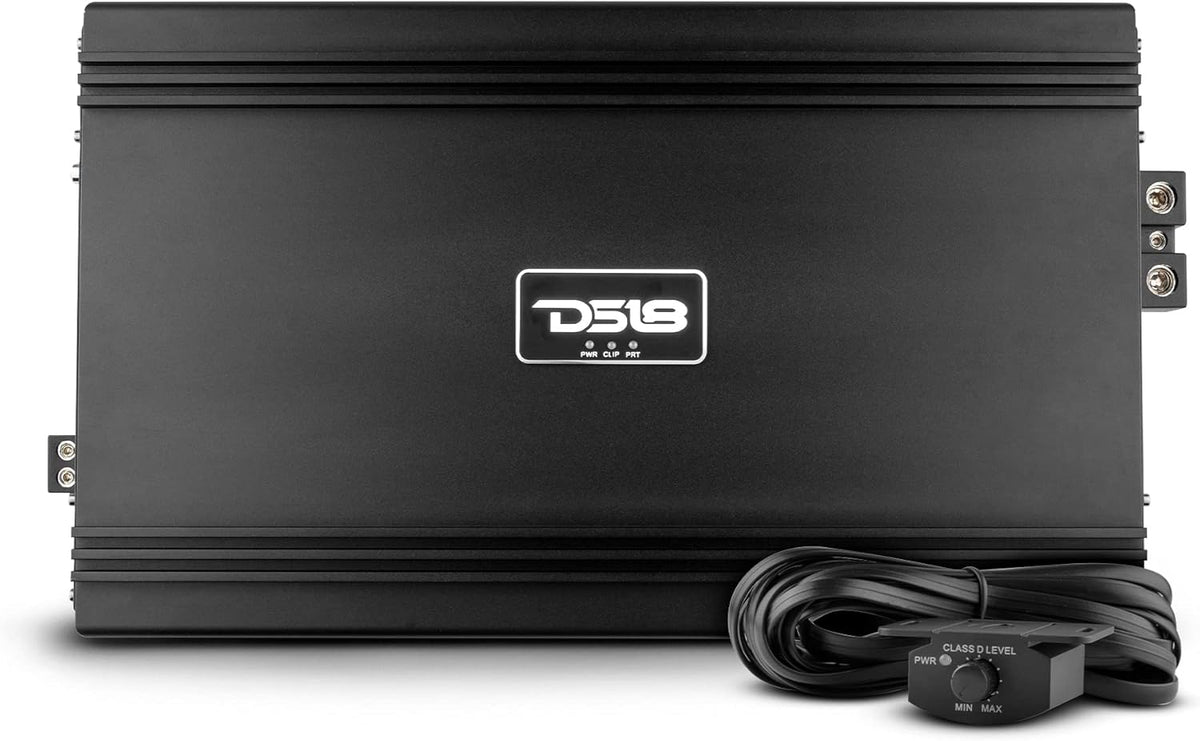

| Remote BASS Knob Included |
